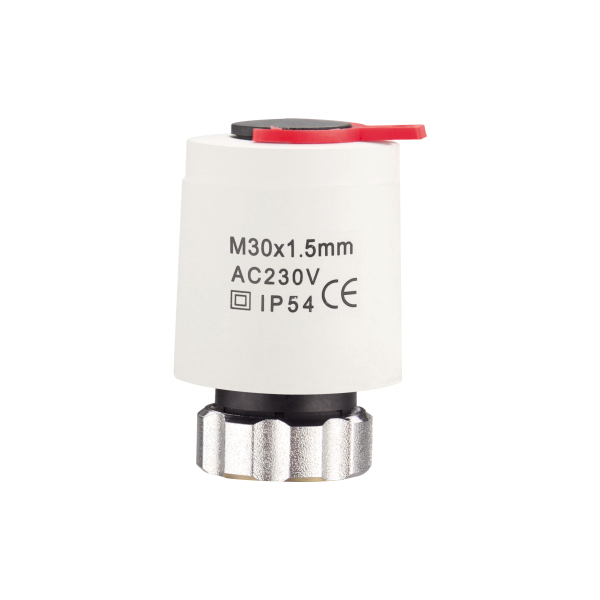

In the realm of automation and control systems, electric thermal actuators play a pivotal role by converting electrical energy into mechanical motion or force. These devices are essential components in various industries, facilitating precise control over valves, dampers, and other mechanical assemblies. Below is a comprehensive introduction to electric thermal actuators, exploring their principles, applications, benefits, and considerations for selection.
Principles of Operation
Electric thermal actuators utilize the expansion and contraction properties of materials, typically a heating element and a bimetallic strip, to generate motion. When an electrical current passes through the heating element, it generates heat, causing the bimetallic strip to bend due to differential thermal expansion rates between its constituent metals. This bending motion is harnessed to drive the actuator's output shaft, which in turn operates the connected mechanism, such as opening or closing a valve.
Types and Configurations
Electric thermal actuators come in various types and configurations to suit different applications. Some common classifications include:
- Linear Actuators: These produce a straight-line motion, ideal for controlling linear valves or dampers.
- Quarter-Turn Actuators: Suitable for valves that require 90-degree rotation, such as ball valves and butterfly valves.
- Multi-Turn Actuators: Used for valves that require multiple turns to fully open or close, often found in gate valves.
Applications Across Industries
The versatility of electric thermal actuators makes them indispensable in numerous industries:
- HVAC Systems: Regulating dampers and valves in heating, ventilation, and air conditioning systems for optimal climate control.
- Industrial Processes: Controlling flow rates of fluids and gases in chemical plants, refineries, and manufacturing facilities.
- Marine and Offshore: Managing valves on ships and offshore platforms to ensure safety and operational efficiency.
- Automotive: In some advanced applications, for controlling valves in engine cooling systems or exhaust systems.
- Agriculture: Automating irrigation systems by controlling water flow in response to soil moisture levels.
Benefits of Electric Thermal Actuators
- Simplicity and Reliability: Electric thermal actuators operate on a straightforward principle, reducing complexity and enhancing reliability.
- Energy Efficiency: Many models incorporate energy-saving features, such as low power consumption during standby mode.
- Precision Control: With advancements in sensing and control technologies, these actuators can offer high levels of accuracy and repeatability.
- Ease of Installation and Maintenance: Compact design and straightforward wiring make installation and routine maintenance straightforward.
- Adaptability: Available in a range of sizes, torques, and configurations to suit diverse applications.
