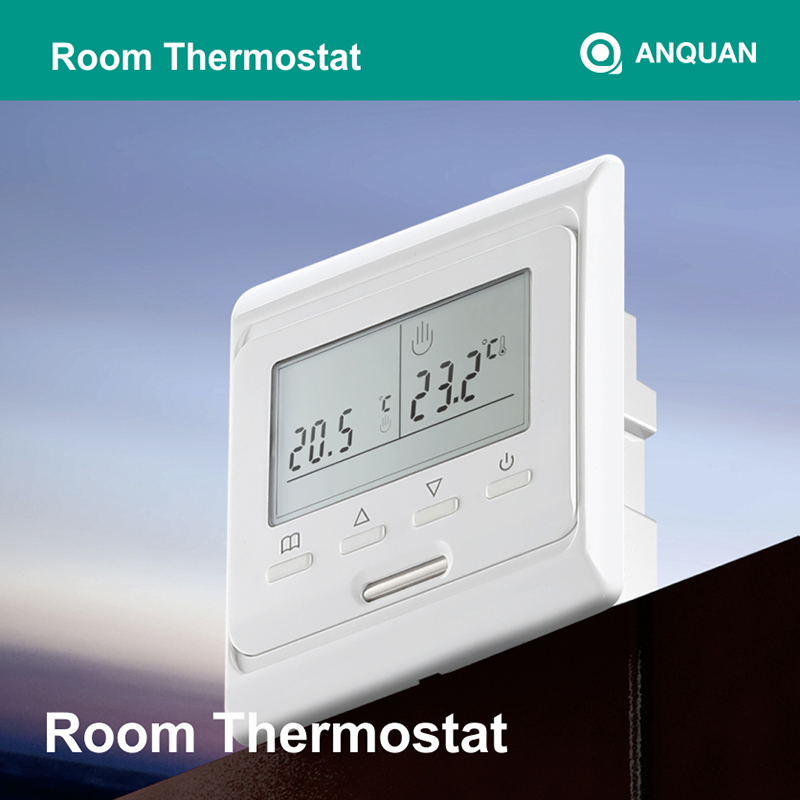

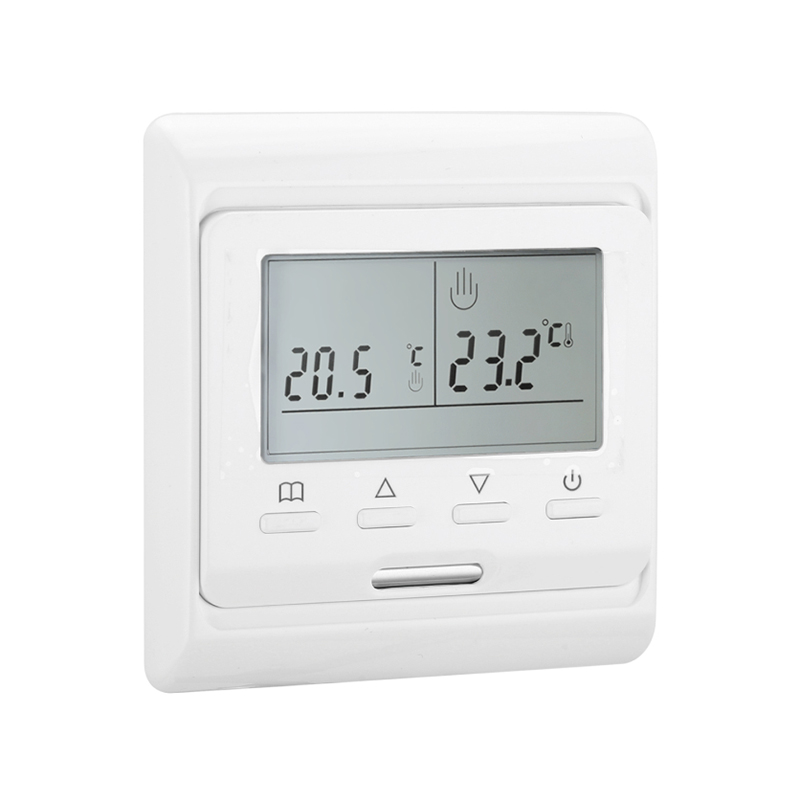

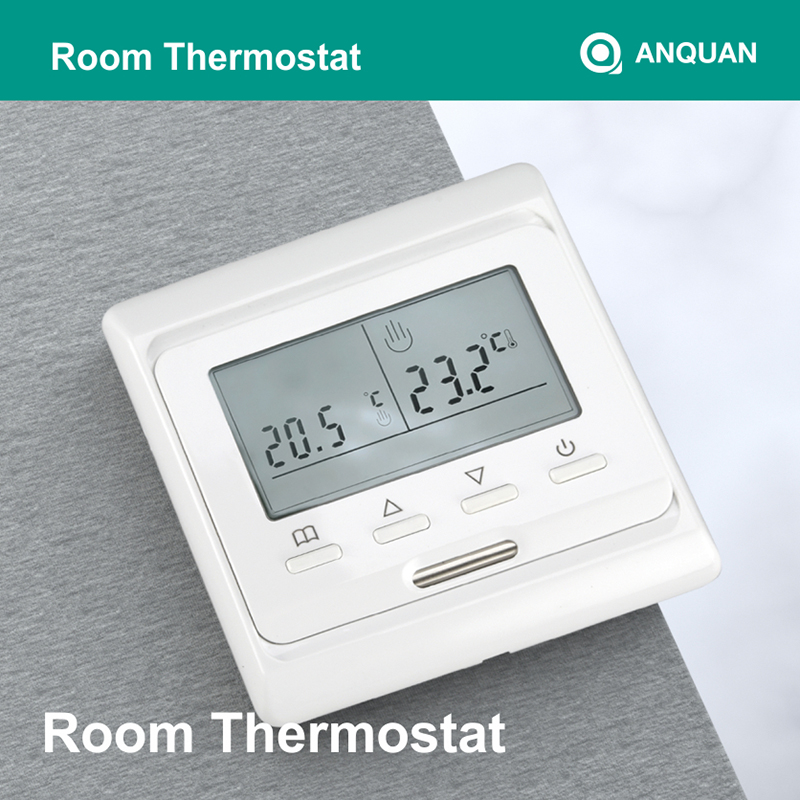

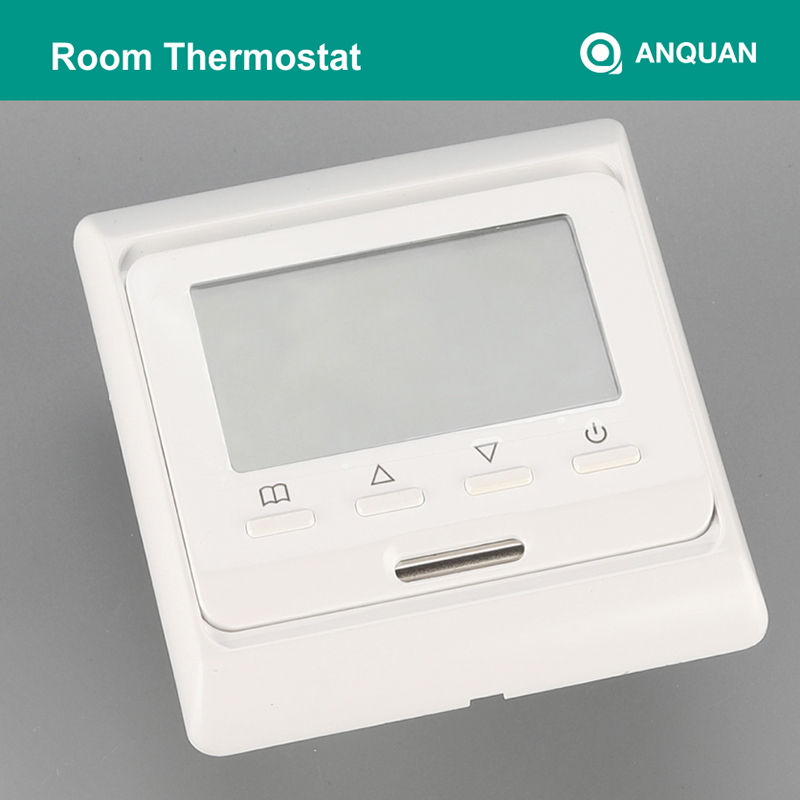

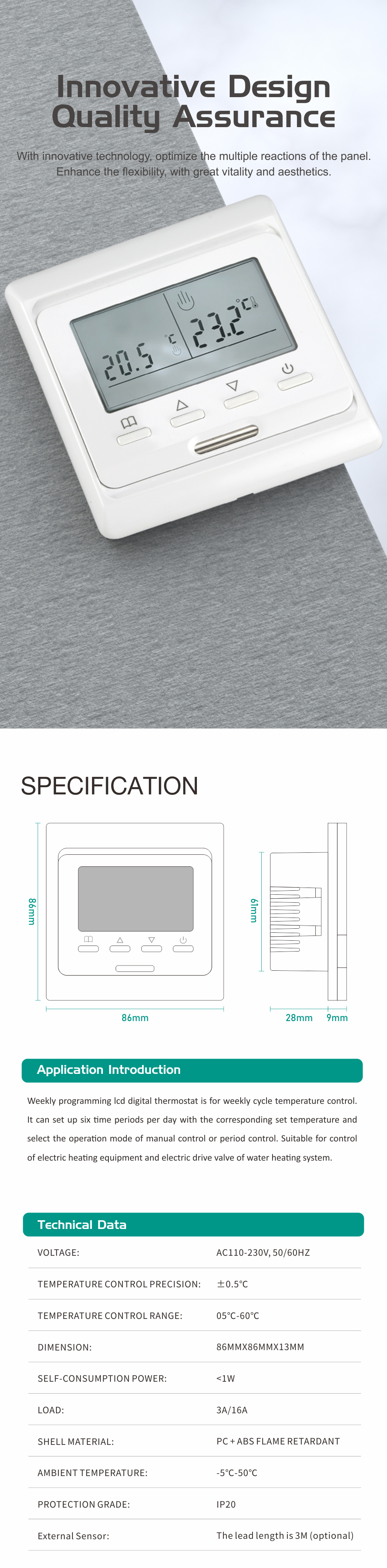

Weekly programming lcd digital thermostat is for weekly cycle temperature control. It can set up six time periods per day with the corresponding set temperature and select the operation mode of manual control or period control. Suitable for control of electric heating equipment and electric drive valve of water heating system.
| VOLTAGE: | AC110-230V, 50/60HZ |
| TEMPERATURE CONTROL PRECISION: | ±0.5℃ |
| TEMPERATURE CONTROL RANGE: | 05℃-35℃ |
| DIMENSION: | 86MMX86MMX13MM |
| SELF-CONSUMPTION POWER: | <1W |
| LOAD: | 3A/16A |
| SHELL MATERIAL: | PC + ABS FLAME RETARDANT |
| AMBIENT TEMPERATURE: | -5℃-50℃ |
| PROTECTION GRADE: | IP20 |
| External Sensor: | The lead length is 3M (optional) |
