Electrothermal Actuator

AQ-2206

Product Introduction

Model:AQ-2206Name:Electrothermal Actuator
Application:

For circuit control of water manifold in underfloor heating system

Testing:

Cold and heat exchange, initial stroke, life test, displacement curve.

Introduction:

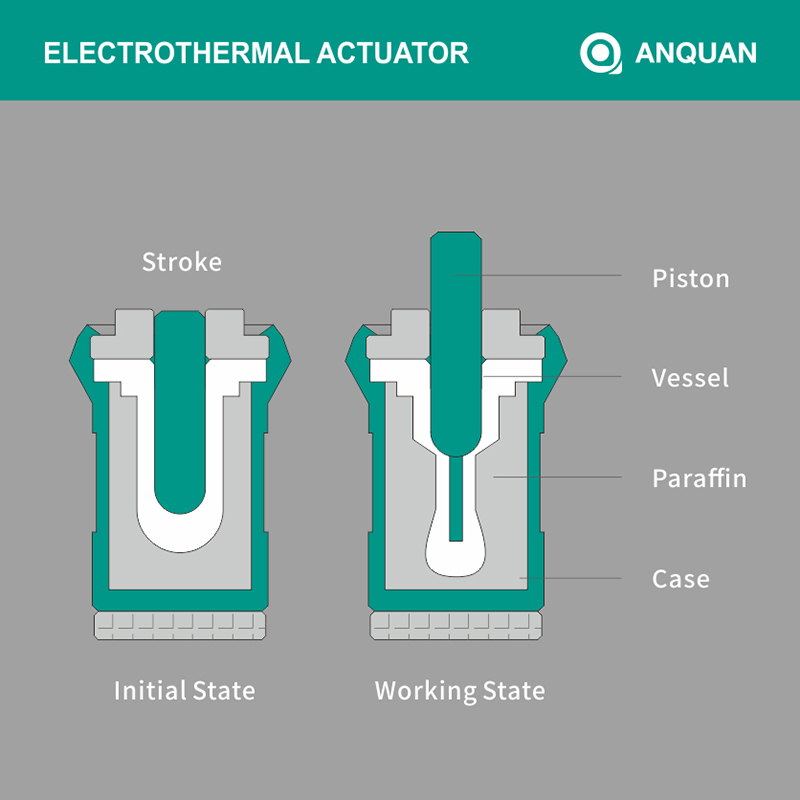

Imported paraffin, driven by PTC heating.
The resin is expanded by heat to push the valve.
Reset function, noiseless running.
Valves can be closed or opened (NC or NO) after power off.

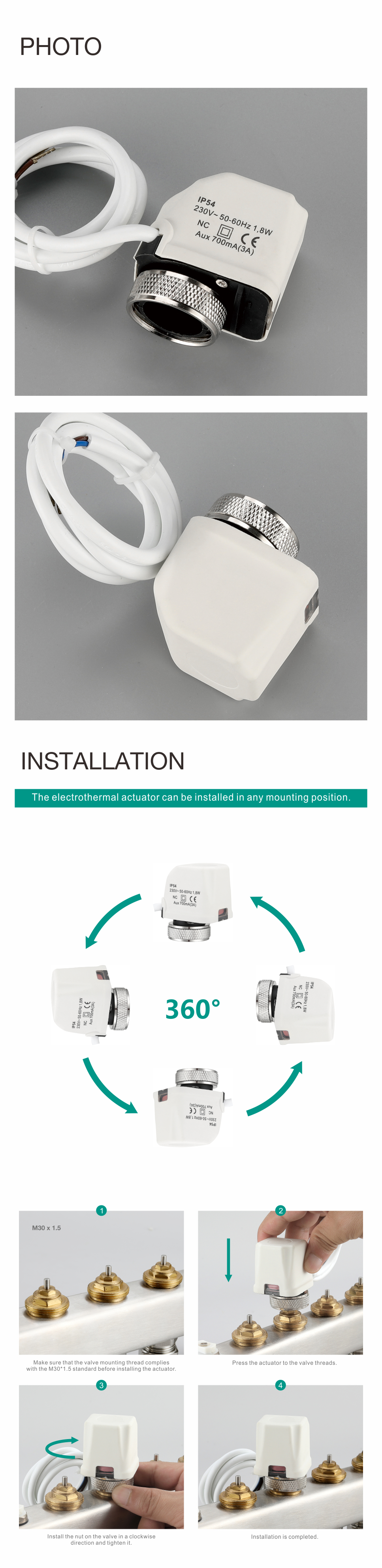

Easy to install and dismantle with nut connection.

Parameter Details
